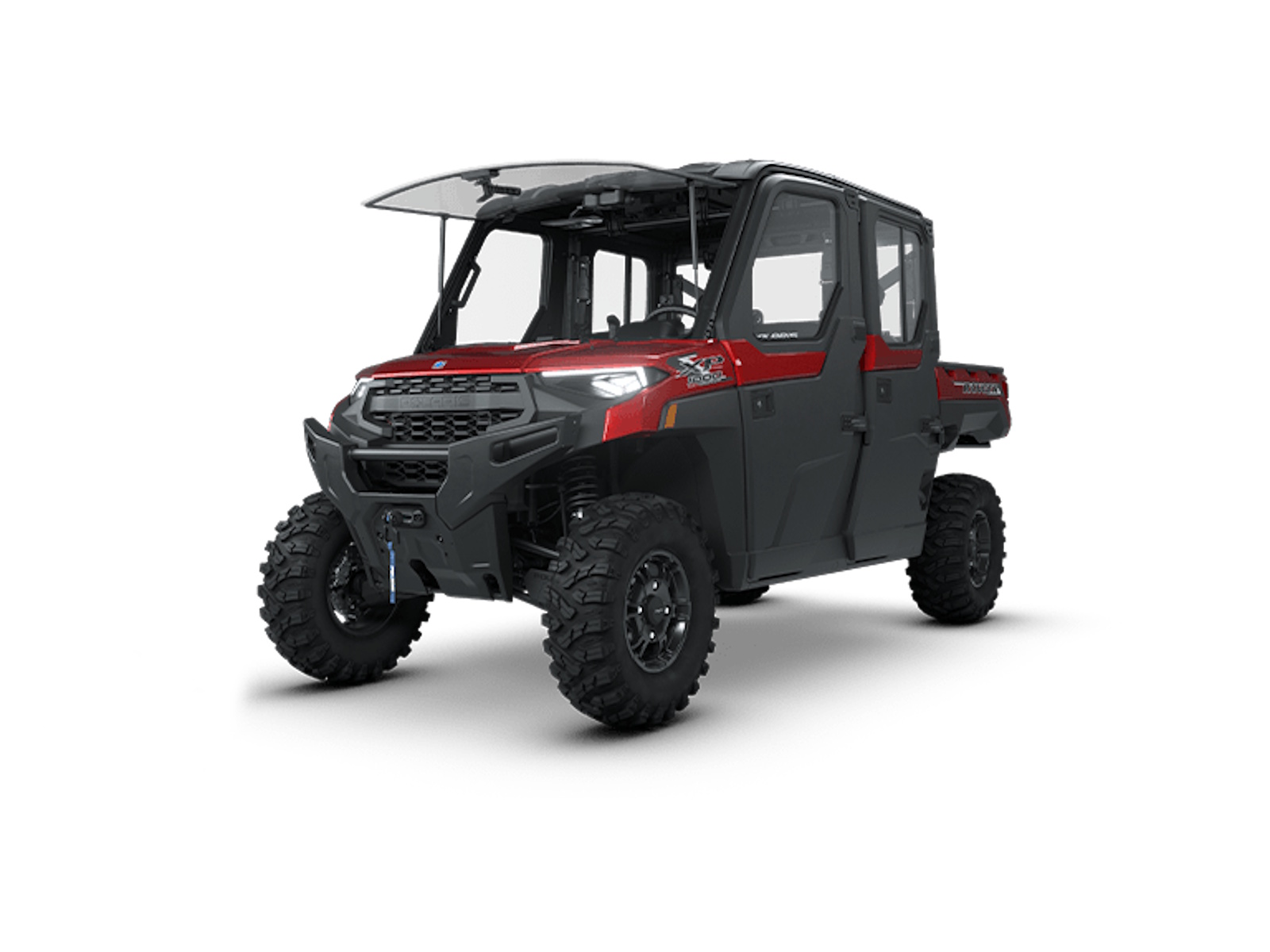

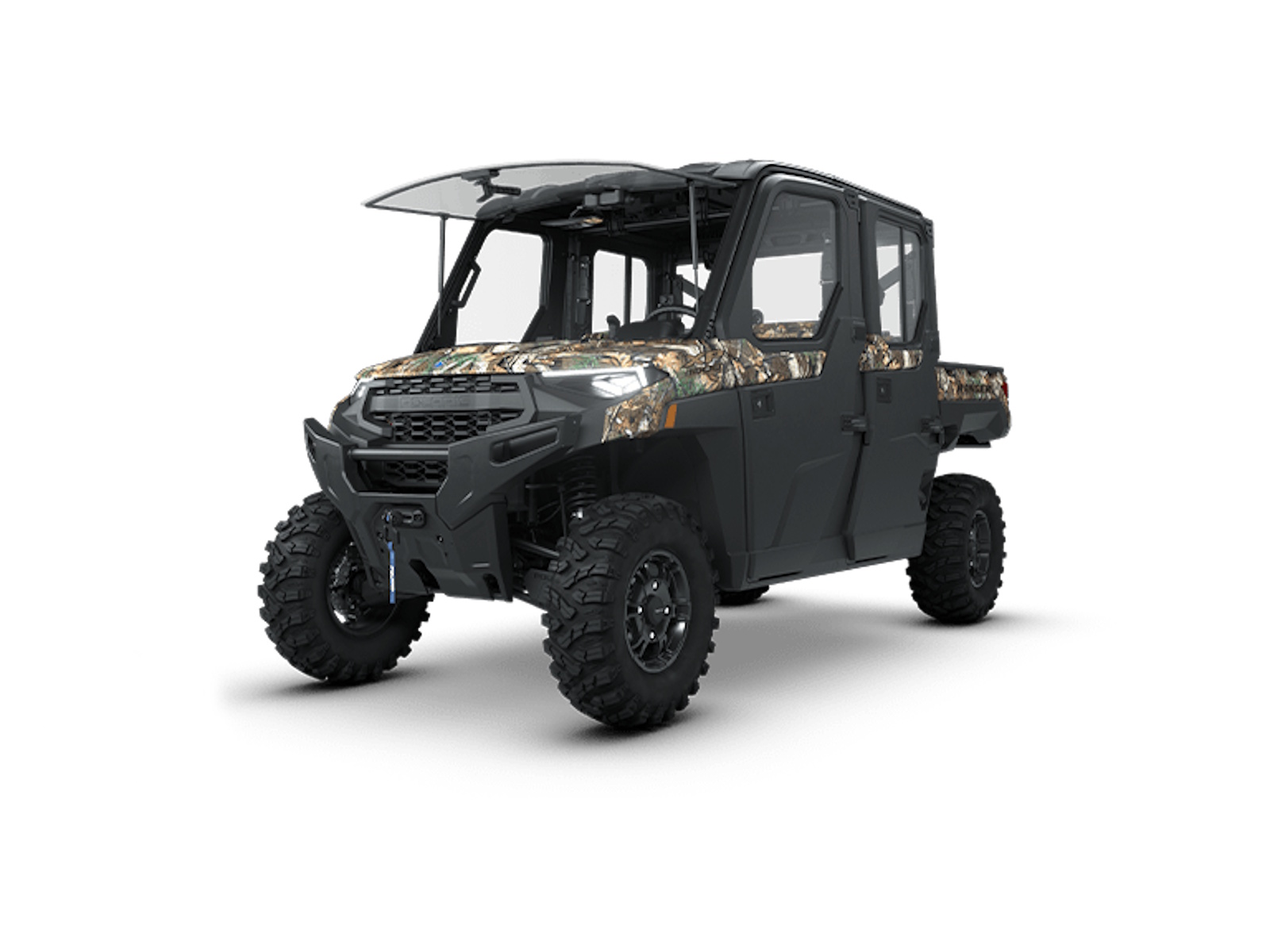

2026 test 456 RANGER CREW XP 1000 NorthStar Edition Premium Orange Rust
Get in Touch
Info
Industry
Powersports
Make
test 456
Model
RANGER CREW XP 1000 NorthStar Edition Premium
Trim
Orange Rust
Year
2026
MSRP
33199
Category
UTV
Subcategory
Side By Side
Specs
Engine Cooling
Liquid
Engine Disp to Wgt
999 cc
Primary Drive
Selectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
Engine Type
ProStar engine 4-stroke twin cylinder DOHC
Fuel System
Electronic Fuel Injection
Transmission
Gen 2 Automatic PVT H/L/N/R/P; shaft
Cargo Bed
Length: 36.7 in, Width: 54.2 in, Height: 12. 5 in
Cargo Bed Capacity
1,000 lbs (454 kg) CA Models: 600 lbs. (272 kg)
Weight (Dry)
2,471 lbs (1,121 kg)
Fuel Capacity
11.5 gal (43.5 L)
Ground Clearance
14 in (36 cm)
Hitch
Type: Standard 2 in (5 cm) receiver
Length
Overall Vehicle Size: 152 in
Width
Overall Vehicle Size: 65 in
Height
Overall Vehicle Size: 79.5 in
Max Payload
1,125 lbs (510 kg)
Seats
Person Capacity: 6 | Seat Type: 6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
Tow Capacity
2,500 lbs (1,134 kg)
Turning Radius
17 ft 5 in (5.3 m)
Wheelbase
113 in (287 cm)
Rear Brake
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Front Brake
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park in-transmission
Security
Polaris P.A.S.S. anti-theft system
Front Tire
29 x 9-14; Pro Armor X Terrain
Rear Tire
29 x 11-14; Pro Armor X Terrain
Tire Ply Rating
8-ply
Wheels
14 in aluminum
Suspension (Front)
Dual A-arm, 10 in (25.4 cm) travel
Suspension (Rear)
Dual A-arm, 10 in (25.4 cm) travel
Cargo System
Gas-assist dump box with Lock & Ride accessory integration
Door Type
Powered window front doors, crank window rear doors
Vehicle Protection
Large steel bumper, full-coverage skid plate, CV shields
Winch
4,500-lbs Winch with synthetic rope, Auto Stop and wireless remote
Electrical System
140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
Lighting
Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
Headlight(s)
Dual LED headlights
Instrumentation
Dual-sweep analog dials with 4 in LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
Steering
Electronic Power SteeringHigh-output EPS | Tilt adjustment
Speed Limiting
controlled in gauge
Heater
Factory-installed heating
Air Conditioner
Factory-installed air conditioning system
Power Outlet
USB charge port & battery charge port
Horsepower
82 hp
Fuel Type
Gasoline
